Evacuated Tube Collectors

FORCED CIRCULATION SYSTEMS - PRESSURIZED

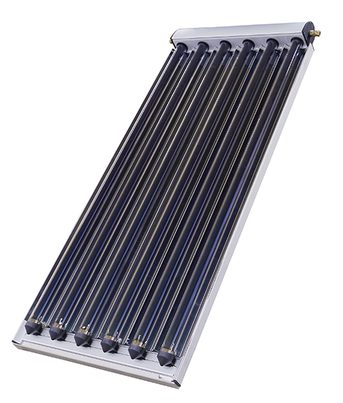

CPC 1506

Evacuated tube collector with CPC-reflector - 6 evacuated tubes for water, space and process heating, series connection

Pipe material: Copper
Scope of delivery: Fully pre-assembled unit comprising

  • Evacuated tubes based on the thermos flask principle
  • Manifold with direct flow heat conduction unit and dry tube connection
  • CPC-reflector
Collectors are packed in individual boxes. In addition, there is a sun protection sheet over the evacuated tubes. Installation types:
  • On-roof installation
  • Flat roof / wall installation
Note:The manifold must always be mounted on top. The minimum angle for on-roof and flat roof installation is 15º.

SPECIFICATION

Series CPC1506
No. of Evacuated Tubes 6
η (Aperture), DIN 4757-4 or EN 12975 % 64.2
c1 with wind, in relation to aperture W/(m²k) 0.89
c2 with wind, in relation to aperture W/(m²k²) 0.001
Yield forecast kWh/m²a 651
(location Würzburg, Germany, reference area 3m²)
Yield forecast kWh/m²a 589
(location Würzburg, Germany, reference area 5m²)
Grid dimensions (length x height x depth) m 0.70 x 1.64 x 0.1
Gross surface area m² 1.15
Aperture area m² 1.0
Collector contents l 0.8
Weight kg 19
Max. working overpressure bar 10
Max. stagnation temperature ºC 272
Connection diameter, clamping ring mm 15
Sensor sleeve mm 6
Collector material AI / Cu / glass / Silicone / PBT / EPDM / TE
Glass tube material Borosilicate glass 3.3
Selective absorber coating material Aluminium nitride
Glass tube (Ø ext./Ø int./wall thckn./tube lgth.) mm 47/37/1.6/1500
Colour (aluminium frame profile, anodised) mm Aluminium grey
Colour (plastic parts) Black
Thermal shock test ITW test 06COL513/1
Hailstone test according to DIN EN 12975-2 TÜV test 435/142448
EC type examination Z-IS-DDK-MUC-07-08-100029919-003
DIN CERTCO registration number 011-7S113R

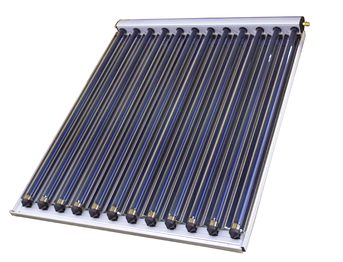

CPC 1512

Evacuated tube collector with CPC-reflector - 12 evacuated tubes for water, space and process heating, series connection

Pipe material: Copper Scope of delivery: Fully pre-assembled unit comprising

  • CPC-reflector
  • Evacuated tubes based on the thermos flask principle
  • Manifold with direct flow heat conduction unit and dry tube connection
Collectors are packed in individual boxes. In addition, there is a sun protection sheet over the evacuated tubes. Installation types:
  • On-roof installation
  • Flat roof / wall installation
Note: The manifold must always be mounted on top. The minimum angle for on-roof and flat roof installation is 15º.

SPECIFICATION

Series CPC1512
No. of Evacuated Tubes 12
η (Aperture), DIN 4757-4 or EN 12975 % 64.2
c1 with wind, in relation to aperture W/(m² k) 0.89
c2 with wind, in relation to aperture W/(m²k²) 0.001
Yield forecast kWh/m²a 651
(location Würzburg, Germany, reference area 3m²)
Yield forecast kWh/m²a 589
(location Würzburg, Germany, reference area 5m²)
Grid dimensions (length x height x depth) m 1.39 x 1.64 x 0.1
Gross surface area m² 2.28
Aperture area m² 2.0
Collector contents l 1.6
Weight kg 37
Max. working overpressure bar 10
Max. stagnation temperature ºC 272
Connection diameter, clamping ring mm 15
Sensor sleeve mm 6
Collector material AI / Cu / glass / Silicone / PBT / EPDM / TE
Glass tube material Borosilicate glass 3.3
Selective absorber coating material Aluminium nitride
Glass tube (Ø ext./Ø int./wall thckn./tube lgth.) mm 47/37/1.6/1500
Colour (aluminium frame profile, anodised) Aluminium grey
Colour (plastic parts) Black
Thermal shock test ITW test 06COL513/1
Hailstone test according to DIN EN 12975-2 TÜV test 435/142448
EC type examination Z-IS-DDK-MUC-07-08-100029919-003
DIN CERTCO registration number 011-7S113R

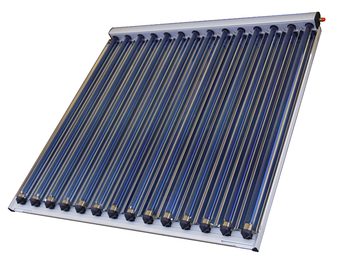

CPC 1518

Evacuated tube collector with CPC-reflector - 18 evacuated tubes for water, space and process heating, series connection

Pipe material: Copper Scope of delivery: Fully pre-assembled unit comprising

  • Evacuated tubes based on the thermos flask principle
  • Manifold with direct flow heat conduction unit and dry tube connection
  • CPC-reflector
Collectors are packed in individual boxes. In addition, there is a sun protection sheet over the evacuated tubes. Installation types:
  • On-roof installation
  • Flat roof / wall installation
Note: The manifold must always be mounted on top. The minimum angle for on-roof and flat roof installation is 15º.

SPECIFICATION

Series CPC1518
No. of Evacuated Tubes 18
η (Aperture), DIN 4757-4 or EN 12975 % 64.2
c1 with wind, in relation to aperture W/(m²k) 0.89
c2 with wind, in relation to aperture W/(m²k²) 0.001
Yield forecast kWh/m²a 651
(location Würzburg, Germany, reference area 3m²)
Yield forecast kWh/m²a 589
(location Würzburg, Germany, reference area 5m²)
Grid dimensions (length x height x depth) m 2.08 x 1.64 x 0.1
Gross surface area m² 3.41
Aperture area m² 3.0
Collector contents l 2.4
Weight kg 54
Max. working overpressure bar 10
Max. stagnation temperature ºC 272
Connection diameter, clamping ring mm 15
Sensor sleeve mm 6
Collector material AI / Cu / glass / Silicone / PBT / EPDM / TE
Glass tube material Borosilicate glass 3.3
Selective absorber coating material Aluminium nitride
Glass tube (Ø ext./Ø int./wall thckn./tube lgth.) mm 47/37/1.6/1500
Colour (aluminium frame profile, anodised) Aluminium grey
Colour (plastic parts) Black
Thermal shock test ITW test 06COL513/1
Hailstone test according to DIN EN 12975-2 TÜV test 435/142448
EC type examination Z-IS-DDK-MUC-07-08-100029919-003
DIN CERTCO registration number 011-7S113R

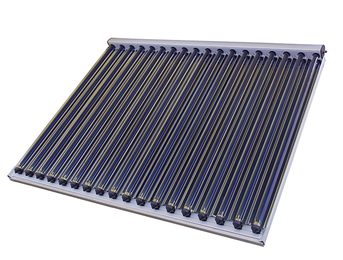

U 1521

Evacuated tube collector without CPC-reflector - 21 evacuated tubes for water heating, series connection

Pipe material: Copper Scope of delivery: Fully pre-assembled unit comprising

  • Evacuated tubes based on the thermos flask principle
  • Manifold with direct flow heat conduction unit and dry tube connection
Collectors are packed in individual boxes. In addition, there is a sun protection sheet over the evacuated tubes. Installation types:
  • On-roof installation
  • Flat roof
  • Horizontal installation

SPECIFICATION

Series U1521
η (Aperture), DIN 4757-4 or EN 12975 % 74.5
c1 with wind, in relation to aperture W/(m²k) 2.007
c2 with wind, in relation to aperture W/(m²k²) 0.005
Yield forecast kWh/m²a 780
(location Würzburg, Germany, reference area 3m²)
Yield forecast kWh/m²a 619
(location Würzburg, Germany, reference area 5m²)
Grid dimensions (length x height x depth) m 1.45 x 1.64 x 0.1
Gross surface area m² 2.32
Aperture area m² 1.33
Collector contents l 2.5
Weight kg 51
Max. working overpressure bar 10
Max. stagnation temperature ºC 220
Connection diameter, clamping ring mm 15
Sensor sleeve mm 6
Collector material AI / Cu / glass / Silicone / PBT / EPDM / TE
Glass tube material Borosilicate glass 3.3
Selective absorber coating material Aluminium nitride
Glass tube (Ø ext./Ø int./wall thckn./tube lgth.) mm 47/37/1.6/1500
Colour (aluminium frame profile, anodised) Aluminium grey
Colour (plastic parts) Black
Thermal shock test ITW test 06COL517
Hailstone test according to DIN EN 12975-2 TÜV test 435/142448
EC type examination Z-ISDDK-MUC-07-08-100029919-003
DIN CERTCO registration number 011-7S113R

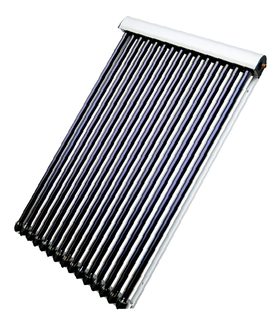

EVACUATED HEAT PIPE COLLECTOR

for water, space and process heating and solar cooling. Scope of delivery Fully pre-assembled unit comprising

  • 12, 16, 20, 24 or 30 evacuated heat pipes,
  • Mainfold with direct flow heat conduction unit and dry tube connection.
Collector are packed in individual boxes. In addition, there is a sun protection sheet over the evacuated heat pipe collector. Installations types
  • Pitched roof, flat roof, on-wall.

Series LN 47-1500-16 LN 47-1500-20 LN 47-1800-16 LN 47-1800-20
No. of evacuated tubes 16 20 16 20
η in relation to aperture, EN 1297 % 68.1 68.1 68.1 500
a1 with wind, in relation to aperture W/(m²k) 1.60 1.60 1.60 1.60
a2 with wind, in relation to aperture W/(m²k²) 0.006 0.006 0.006 0.006
Grid dimensions (length x height x depth) m 1.64x1.15x0.1.4 1.64x1.75x0.14 1.94x1.29x0.14 1.94x1.59x0.14
Gross area m² 1.89 2.86 2.5 3.08
Aperture area m² 1.08 1.35 1.61 2.02
Collector contents l 1.82 1.02 1.94 1.17
Weight kg 36 45 53 66
Max. operating pressure Mpa 0.7 0.7 0.7 0.7
Max. stagnation temperature.1) ºC 230 230 230 230
Connection diameter, compression ?tting mm 22 22 22 22
Glass tube material Borosilicate glass 3.3 Borosilicate glass 3.3 Borosilicate glass 3.3 Borosilicate glass 3.3
Selective absorber coating material SS-AL-N/Cu SS-AL-N/Cu SS-AL-N/Cu SS-AL-N/Cu
Glass tube (Ø ext./Ø int./wall thickn./tube lgth.) 47/37/1.6/1500 47/37/1.6/1500 58/47/1.6/1800 58/47/1.6/1800
Colour (aluminium frame pro?le, anodised) Aluminum grey Aluminum grey Aluminum grey Aluminum grey

CPC OEM XL EVACUATED TUBE COLLECTOR

for water, space and process heating and solar cooling.
Available in two different lenghts:1.64m and 2.05m
Scope of delivery
Fully pre-assembled unit comprising

  • 14, 18 or 21 evacuated tubes based on the thermos flask principle,
  • Mainfold with direct flow heat conduction unit and dry tube connection,
  • CPC-reflector.
Collector are packed in individual boxes. In addition, there is a sun protection sheet over the evacuated tubes.
  • Pitched roof, flat roof, on-wall.

SPECIFICATION

Series CPC OEM XL 1514 CPC OEM XL 1521 CPC OEM XL 1914 CPC OEM XL 1918 CPC OEM XL 1921
No. of Evacuated Tubes 14 21 14 18 21
η in relation to aperture, EN 12975 % 64.2 64.2 64.2 64.2 64.2
a1 with wind, in relation to aperture W/(m²k) 0.89 0.89 0.89 0.89 0.89
a2 with wind, in relation to aperture W/(m²k²) 0.001 0.001 0.001 0.001 0.001
Yield forecast (location Würzburg, Germany, reference area 3m²) kWh/m²a 651 651 651 651 651
Yield forecast (location Würzburg, Germany, reference area 5m²) kWh/m²a 589 589 589 589 589
Grid dimensions (length x height x depth) m 1.62 x 1.64 x 0.1 2.42 x 1.64 x 0.1 1.62 x 2.05 x 0.1 2.08 x 2.05 x 0.1 2.42 x 2.05 x 0.1
Gross surface area m² 2.62 3.92 3.34 4.28 5
Aperture area m² 2.33 3.49 2.97 3.84 4.46
Collector contents l 1.9 2.7 2.22 2.85 3.33
Weight kg 41.4 61.2 47.4 61 71.2
Max. working overpressure bar 10 10 10 10 10
Max. stagnation temperature ºC 272 272 272 272 272
Connection diameter, compression fitting mm 15 15 15 15 15
Sensor sleeve mm 6 6 6 6 6
Collector material Al / Cu / glass / Silicone / PBT / EPDM / TE Al / Cu / glass / Silicone / PBT / EPDM / TE Al / Cu / glass / Silicone / PBT / EPDM / TE Al / Cu / glass / Silicone / PBT / EPDM / TE Al / Cu / glass / Silicone / PBT / EPDM / TE
Glass tube material Borosilicate glass 3.3 Borosilicate glass 3.3 Borosilicate glass 3.3 Borosilicate glass 3.3 Borosilicate glass 3.3
Selective absorber coating material Aluminium nitride Aluminium nitride Aluminium nitride Aluminium nitride Aluminium nitride
Glass tube (Ø ext./Ø int./wall thickn./tube lgth.) mm 47/37/1.6/1500 47/37/1.6/1500 47/37/1.6/1500 47/37/1.6/1500 47/37/1.6/1500
Colour (aluminium frame profile, anodised) Aluminium grey Aluminium grey Aluminium grey Aluminium grey Aluminium grey
Colour (plastic parts) Black Black Black Black Black
Thermal shock test ITW test number 06COL513/1 06COL513/1 06COL513/1 06COL513/1 06COL513/1
Hailstone test according to DIN EN 12975-2 TÜV test 435/142448 435/142448 435/142448 435/142448 435/142448
EC type examination Z-IS-DDK-MUC-07-08-100029919-003 Z-IS-DDK-MUC-07-08-100029919-003 Z-IS-DDK-MUC-07-08-100029919-003 Z-IS-DDK-MUC-07-08-100029919-003 Z-IS-DDK-MUC-07-08-100029919-003
DIN CERTCO registration number 011-7S113R 011-7S113R 011-7S113R 011-7S113R 011-7S113R

THE KEY COMPONENTS ARE IMPORTED FROM LINUO-RITTER AND MANUFACTURED IN INDIA BY TAYLORMADE SOLAR UNDER THE BRAND NAME OF LINUO-TAYLORMADE
